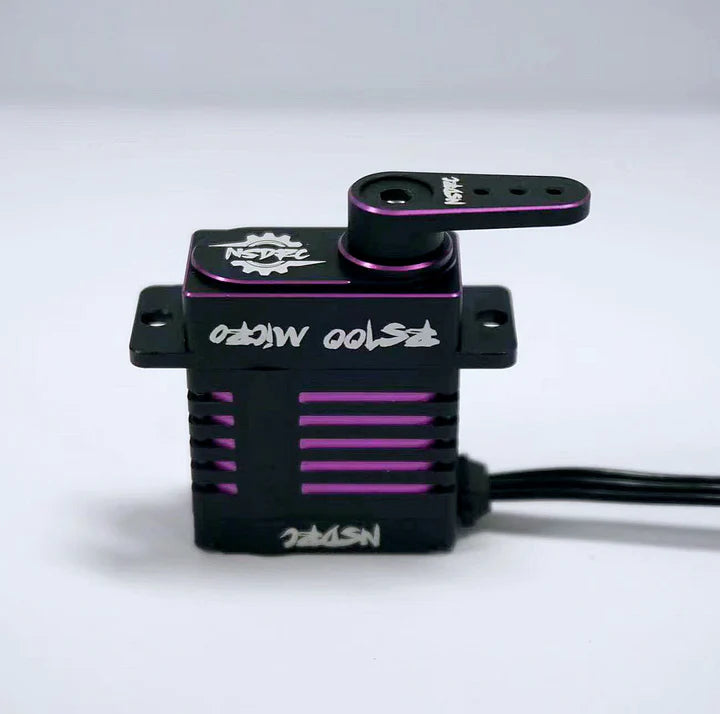

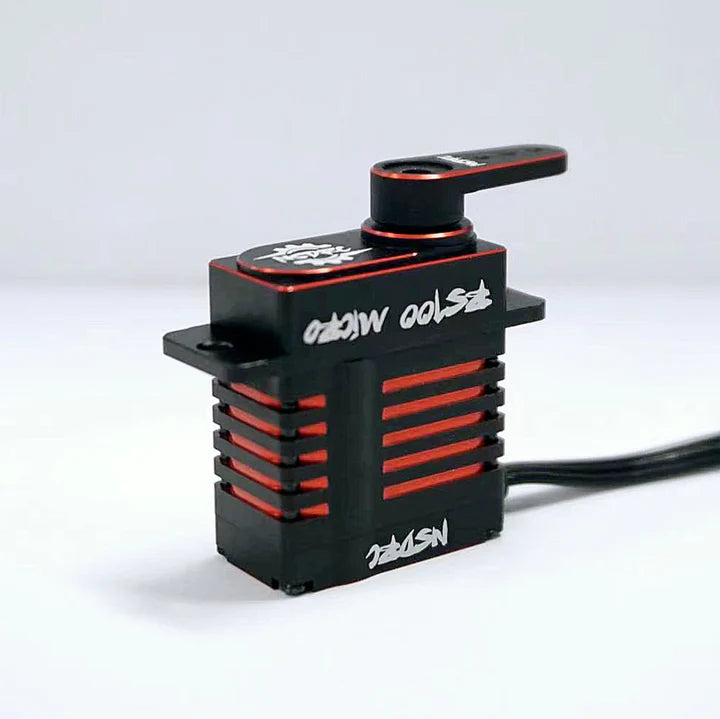

RS100M High Torque / Speed Micro Servo
☆As of May 18 2022, the RS100 has been updated! Now with even more power, and lower amp draw!
Operating Voltage: 5v - 8.4v
Torque: Speed:
105oz/ 7.5kg @ 5v 0.10 @ 5v
120oz/ 8.6kg @ 6v 0.08 @ 6v
143oz/ 10.3kg @ 7.4v 0.07 @ 7.4v
165oz/ 11.9kg @ 8.4v 0.06 @ 8.4v
- High Quality Motor
•Full Cnc Aluminum Case
•Hardened Steel Gears
•Spline: 25T 4.9mm Micro
•Voltage: 5v-8.4v
•Bearing: 2BB
•Wire Length: 185mm
•Weight: .70 oz / 20 Grams
•Dimensions: 23 x 12 x 26mm
•Water Resistant with 7 point O-ring seal
Not Submarine proof, do not submerge
*These do not fit in the stock Scx24 servo mount, we recommend using our Aluminum Scx24 mount or similar.
* BLACK DOES NOT COME WITH SERVO HORN*
