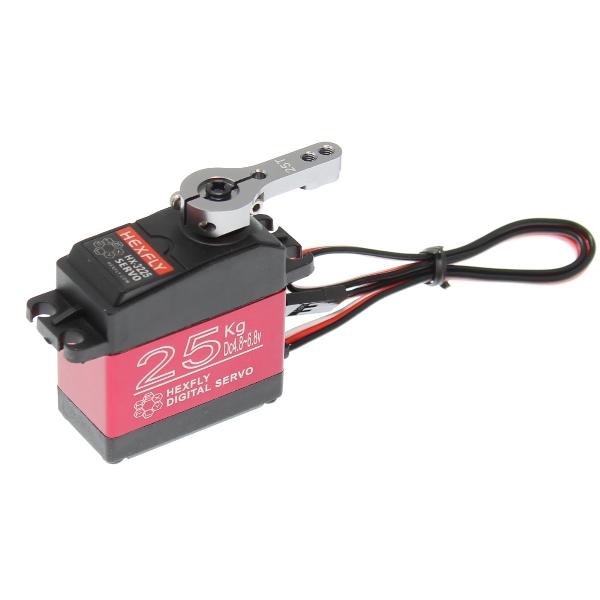

The Hexfly HX-3225 25KG digital servo features metal gears, aluminum center case for fast heat dissipation & is fully waterproof.
With high quality and performance, it is tailored for RC hobbyist to provide an excellent experience at a great price.
- High torque - maximum torque up to 25kg.cm (6.8V)
- High-precision metal gear with hard anodizing for better accuracy and longer life
- CNC aluminum middle shell enhances heat dissipation
- Water proof, made of high-grade material to ensure longevity
- Operating voltage: 4.8 - 6.8V
- Operating speed ( 5.0V ): 0.14 sec/60 degree
- Operating speed ( 6.8V ): 0.13 sec/60 degree
- Stall torque ( 5.0V ): 21kg/cm
- Stall torque ( 6.8V ): 25kg/cm
- Dead band: 3μs
- Working frequency: 50-333Hz
- Connector wire: 300mm (11.8")
- Gear type: Metal
- Motor Type: DC motor
- Servo Size: 40 x 20 x 40.5mm
- Weight: 67g
- 270° Rotation
SERVO HORN NOT INCLUDED
