This is Maclan DRK 160+ TSR Edition Drag Race ESC.
The ONLY Speed Control Designed and Built by Drag racers for Drag racers
In collaboration with Tim Smith, this DRK 160+ TSR Edition has evolved with a lot of improvement over its predecessor. It is the only ESC that was designed and built by drag racers for drag racers. This DRK 160+ ESC has the following new and noticeable features that make it so supreme over competitors:
Proprietary all-new 7-Stage launch power control software (Version T19.01)
All new 70 degrees turbo timing for more power
Factory pre-soldered 10AWG wires
Upgraded control board for more durable control circuit

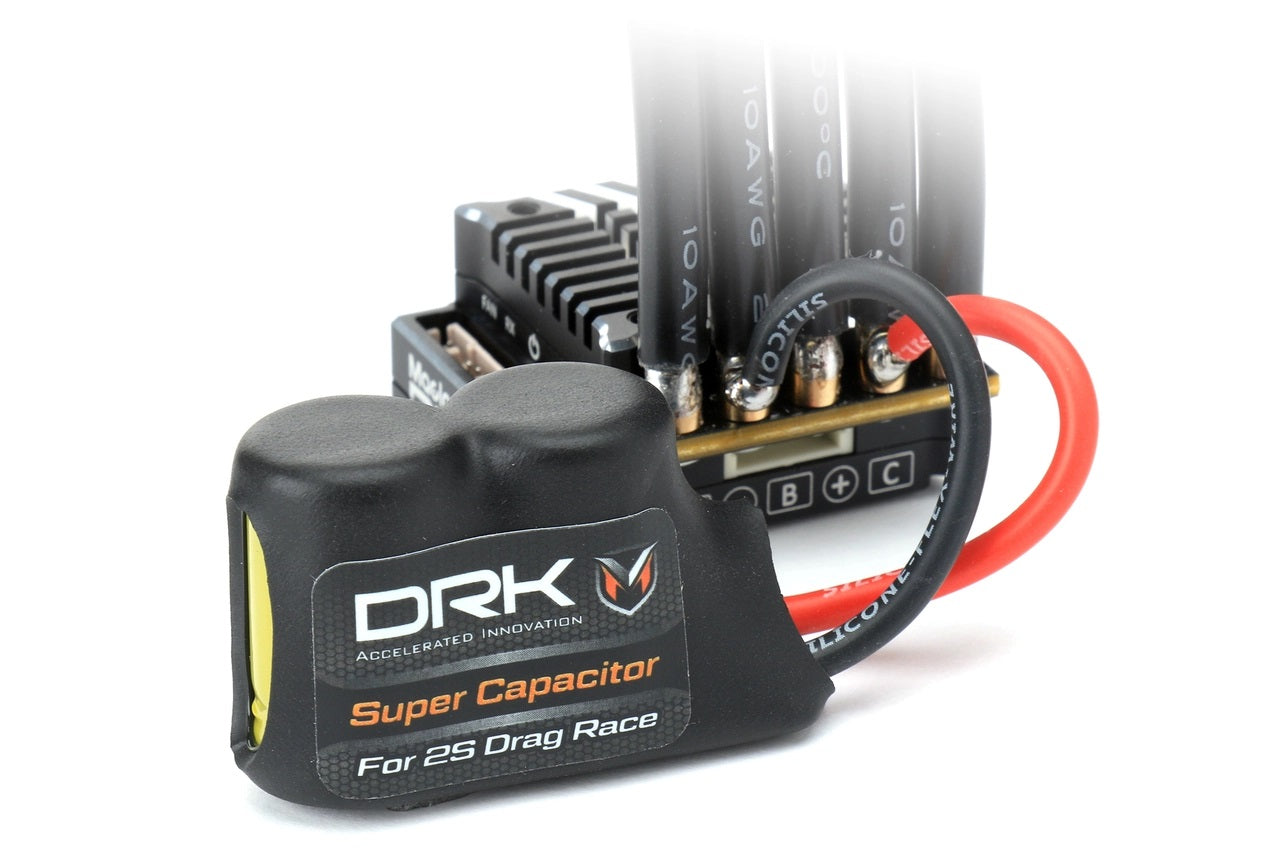

New high capacity DRK Super Capacitor
Improved data logging with higher resolution and crop function
Programing Options
There are few options to program the DRK 160 ESC.
Use a ProLink (with cables included in the ProLink, micro USB + OTG cable)
Use a Windows PC and Maclan Panel Software (with cable included in the ESC)
Use an Android mobile device (5.0 OS or higher) and Maclan Smart Link App (with Type C cable, sold separately)
Use an Apple iPhone with Maclan WiFi module (sold separately) with Maclan Smart Link App
What is included in the DRK 160+ TSR Edition box?
DRK 160+ TSR Edition ESC x1
20cm receiver cable (MCL4243) x1
ESC power switch (MCL4242) x1
30×30 HV ESC fan (MCL4246) x1
USB data cable (MCL4054) x1
Maclan decal x1
If you need to download the user manual, please CLICK HERE.
IMPORTANT Tips:
DRK 160+ TSR Edition ESC preset profiles are based on 20-degree motor can timing. For best results, set motor can timing to 20 degrees or lower.
When installing your new DRK ESC, please set the radio to factory settings, or use a new, unused model. Using “radio tricks” for throttle manipulation is unnecessary and could cause problems with the ESC, resulting in poor performance, or a damaged ESC. The DRK ESC is designed to replace all other methods of manipulating the throttle.
Manufacture Disclaimer:
All products, product specifications, and data are subject to change without notice to improve reliability, function, or design.
If the ESC was able to power on, calibrate, and run a motor, it is free of manufacturing defect.
Reverse polarity damage is not a warranty.
Tire burnout is controlled by the racer. It can damage the ESC. It is not a warranty.
Due to the nature of the drag race application, Maclan Racing guarantees free of manufacturing defects. Any damage during a race is not a manufacturing defect. It is not a warranty.
