KNOCKOUT LATE MODEL AND MIDWEST MOD CONVERSION KIT
Can't decide if you want to build a Late Model or a Midwest Mod dirt oval car? No problem! Buy this one kit and you can make either one! All Five Star conversion kit parts included to make this car a Late Model or MWM!

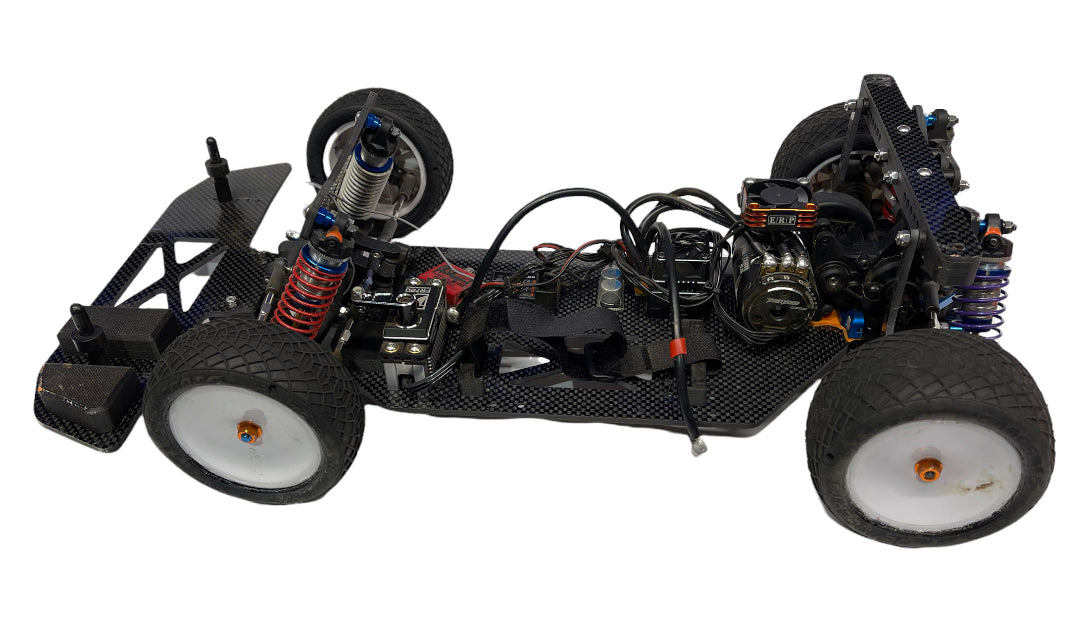

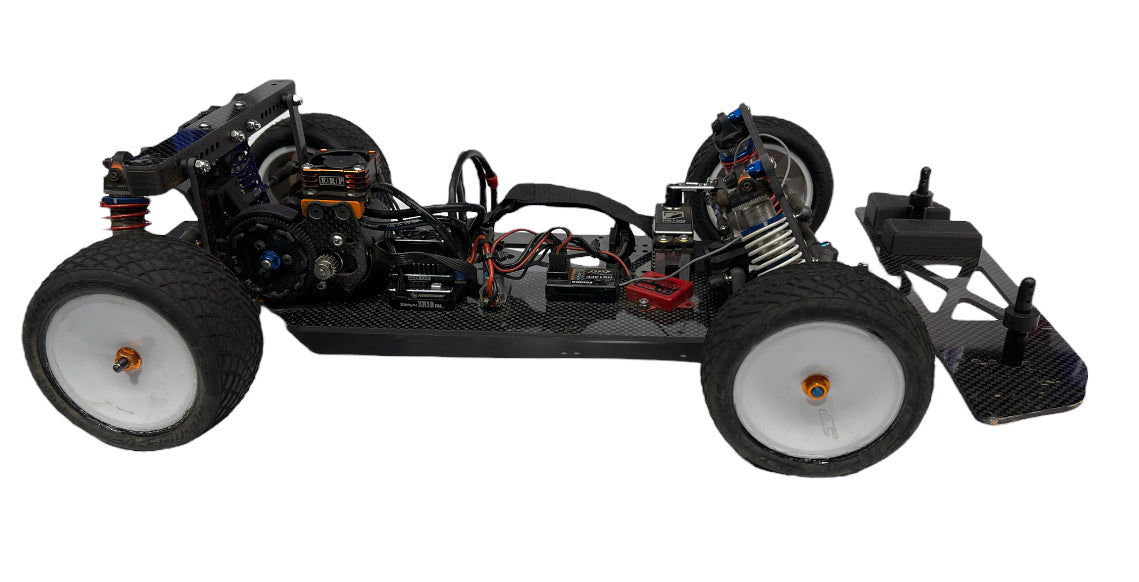

KNOCKOUT CHASSIS - LATE MODEL AND MIDWEST MOD USE THE SAME CHASSIS.
New designed offset conversion chassis for Team Associated B6.1, B6.2, B6.3 and B6.4 or builder’s kit. The chassis allows you to move the battery, transmission, rear arms, and shock tower forward in the car for more steering or move them back to get more rear grip. You can stand up the servo to allow you to move the battery further forward in the car. New designed front end for more stable steering and offset chassis for more left side weight.
MIDWEST MOD
YOU GET THE MWM BUMPER, TWO BODY POST MOUNTS, TWO BODY POST FOR THE FRONT ONLY AND THE MID BODY POST HOLDER FOR THE PASSENGER SIDE.

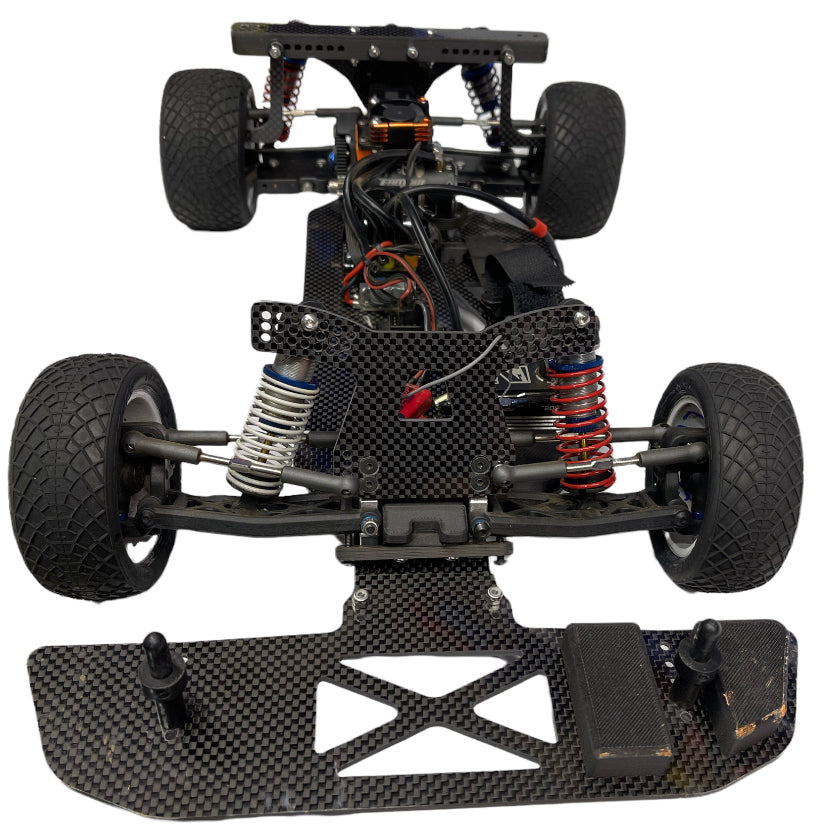

FRONT BUMPER
3mm carbon fiber with holes to mount optional weight boxes
BATTERY BRACE
Six different battery positions to choose from with Velcro strap to hold the battery securely in place
DOOP SCREWS
Comes with front and rear droop adjustment assemblies
REAR BODY MOUNT
3mm carbon fiber body mount
LATE MODEL FRONT BUMPER SPACERS – 2MM, 4MM, 6MM
Spacers to raise or lower the front bumper

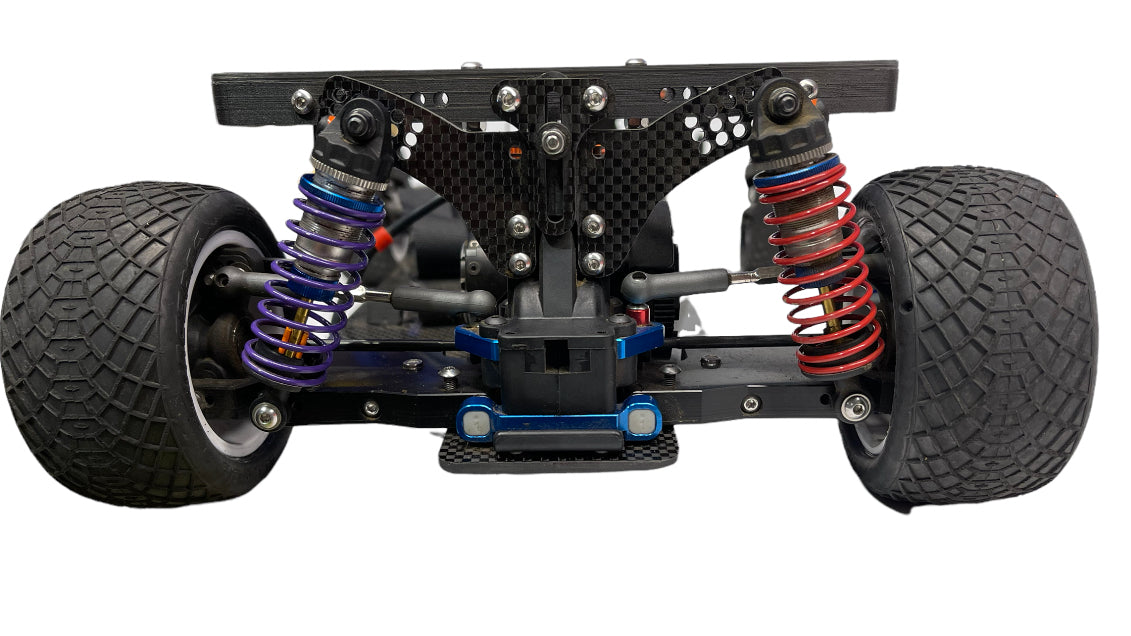

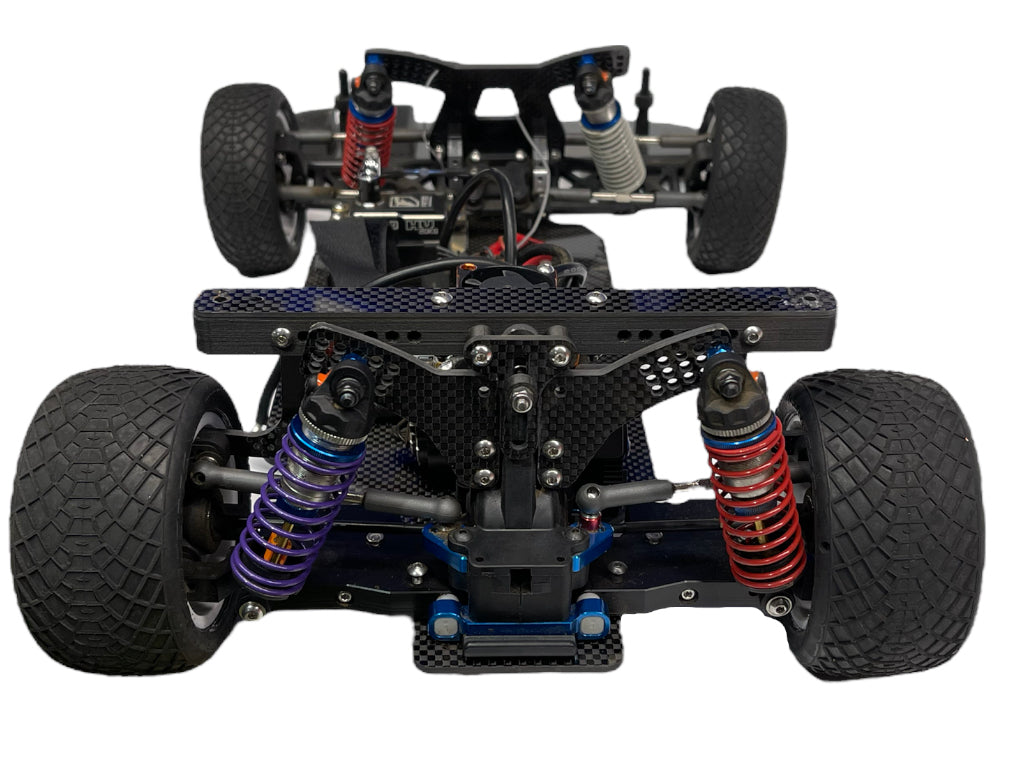

KNOCKOUT FRONT AND REAR SHOCK TOWER
3.5 mm carbon fiber
25 DEGREE CASTER BLOCK FOR KNOCKOUT – ALUMINUM
Aluminum caster blocks
Bolts to chassis and to front shock tower
TRANSMISSION RISER PLATE
Carbon fiber
Fits laydown or layback transmission
UPRIGHT SERVO MOUNTS
Used to mount the servo vertical in the car
30005 ADJUSTABLE REAR ARMS
Rear toe adjustment in or out made from Delrin
Knockout Late model option parts
62024 SERVO WEIGHT BOX
62020 30* CASTER BLOCK - ALUMINUM
62014 20* CASTER BLOCK - ALUMINUM
62031 VERTICAL BATTERY BRACE
62023 LATE MODEL BUMPER OUTSIDE WEIGHT BOX
62026 LATE MODEL BUMPER INSIDE WEIGHT BOX
62027 LATE MODEL SIDE WEIGHT BOX
FLOATING REAR BODY MOUNT KIT
OPTION PARTS PICTURED, NOT INCLUDED:
REAR FLOATING BODY MOUNT
FRONT BUMPER WEIGHT BOX
FRONT, MID AND REAR BODY POST ON LATEMODEL
MID, AND REAR BODY POST ON MWM
PARTS NEEDED TO COMPLETE THE BUILD THAT ARE NOT INCLUDED IN THE
KNOCKOUT KIT FROM FIVE STAR OR THE KIT FROM AE
DONOR CAR SUCH AS A BUILDER’S KIT OR B6.1-B6.4
LOW PROFILE SERVO
SERVO HORN
ESC
BATTERY
MOTOR
WHEELS
TIRES
LATEMODEL BODY
