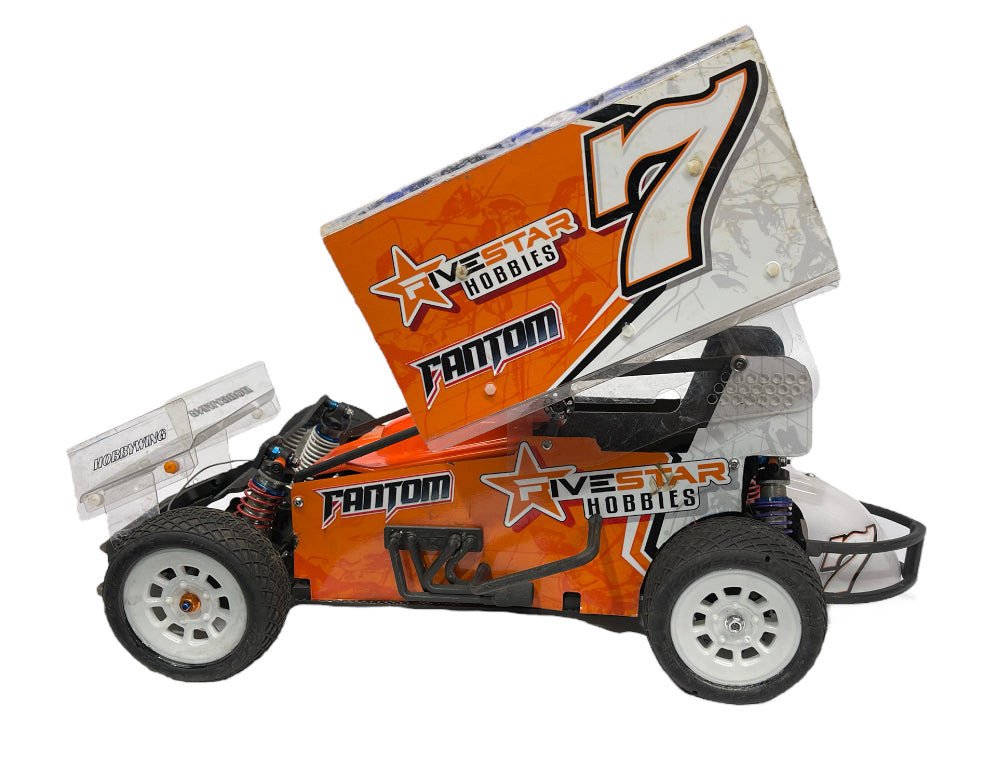

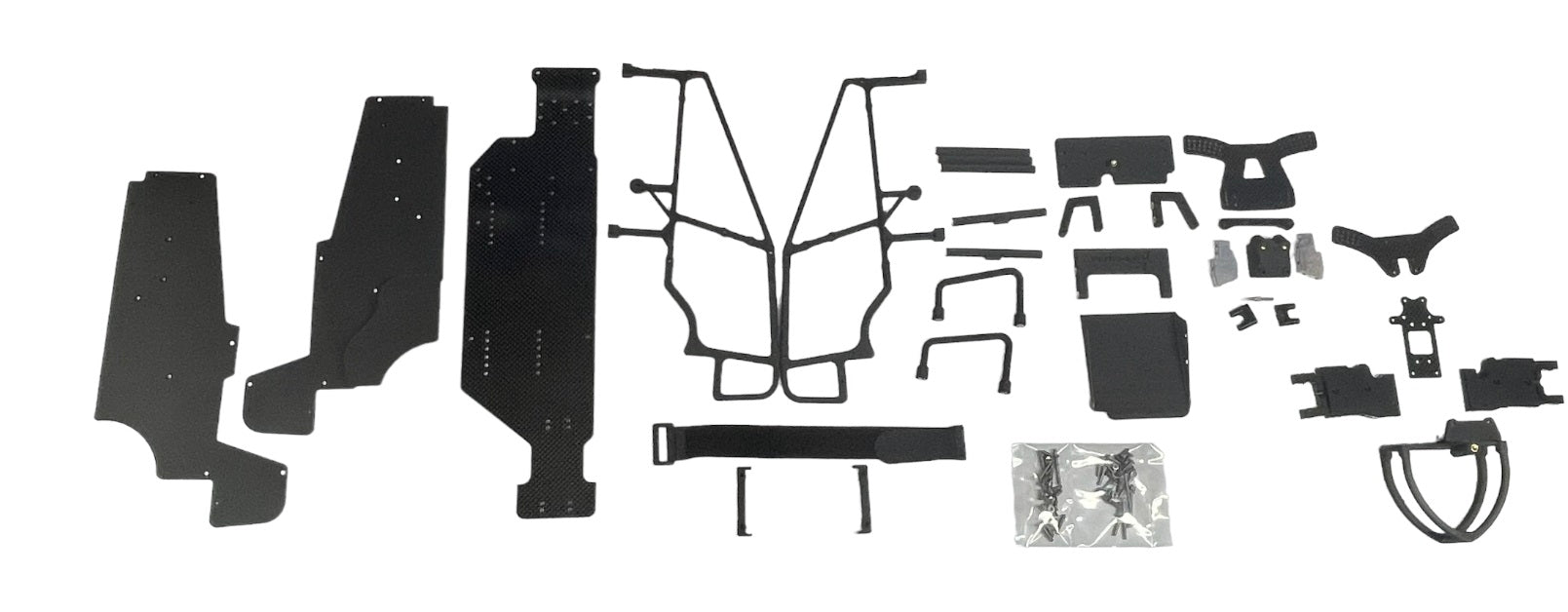

Knockout Sprint Car conversion kit

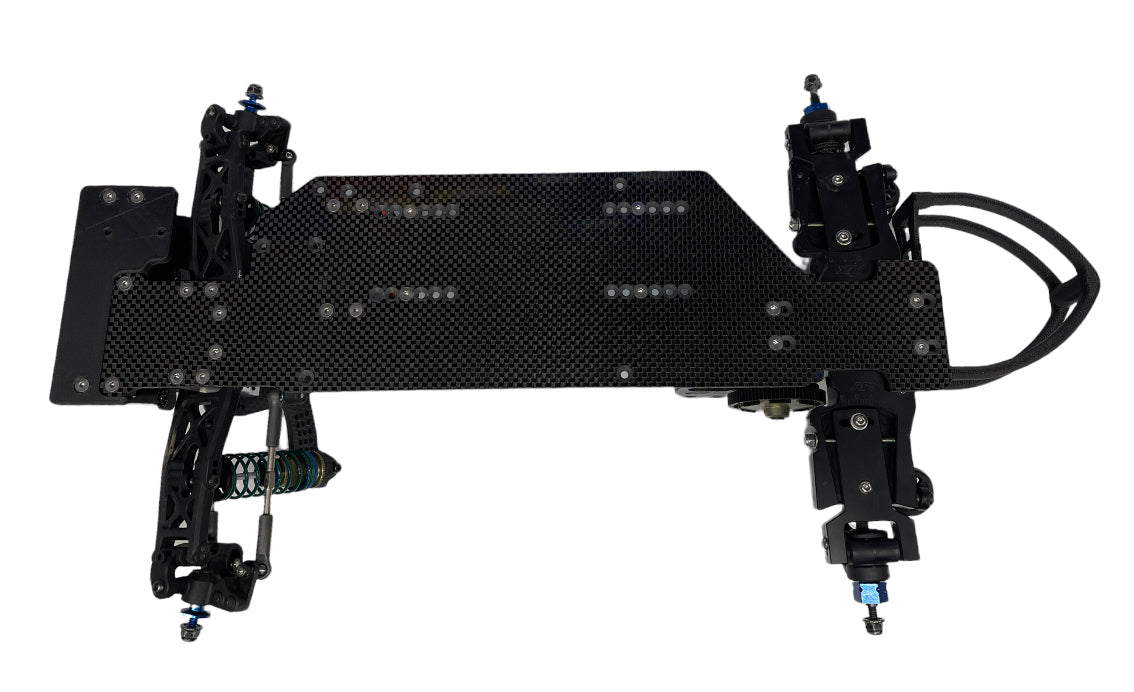

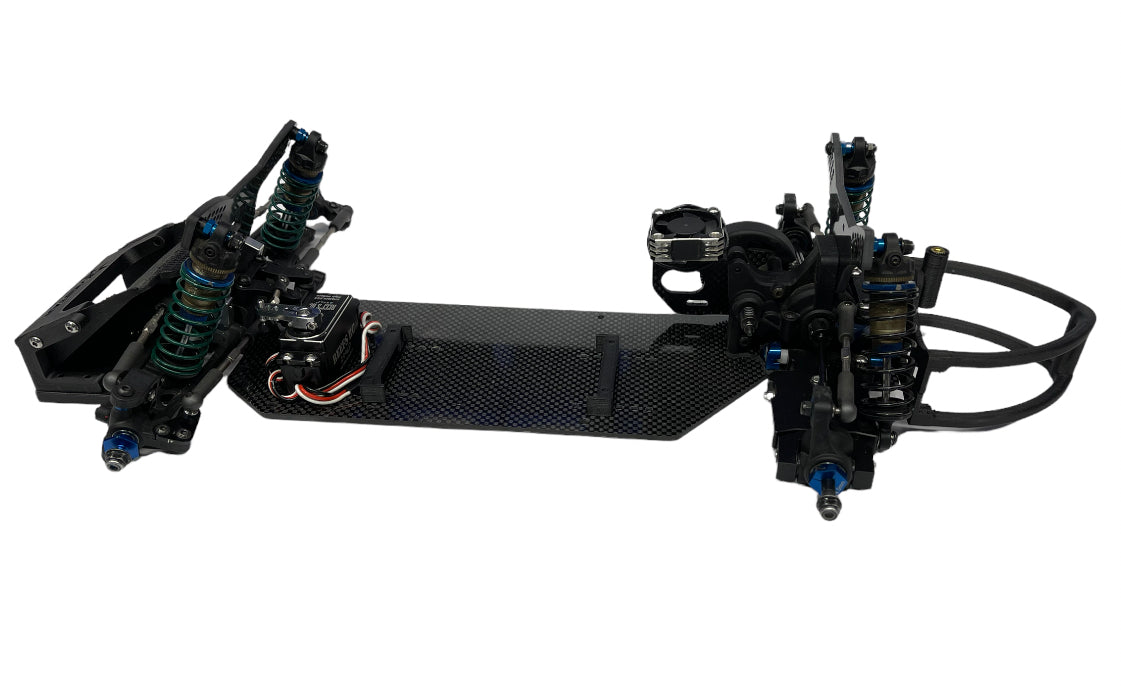

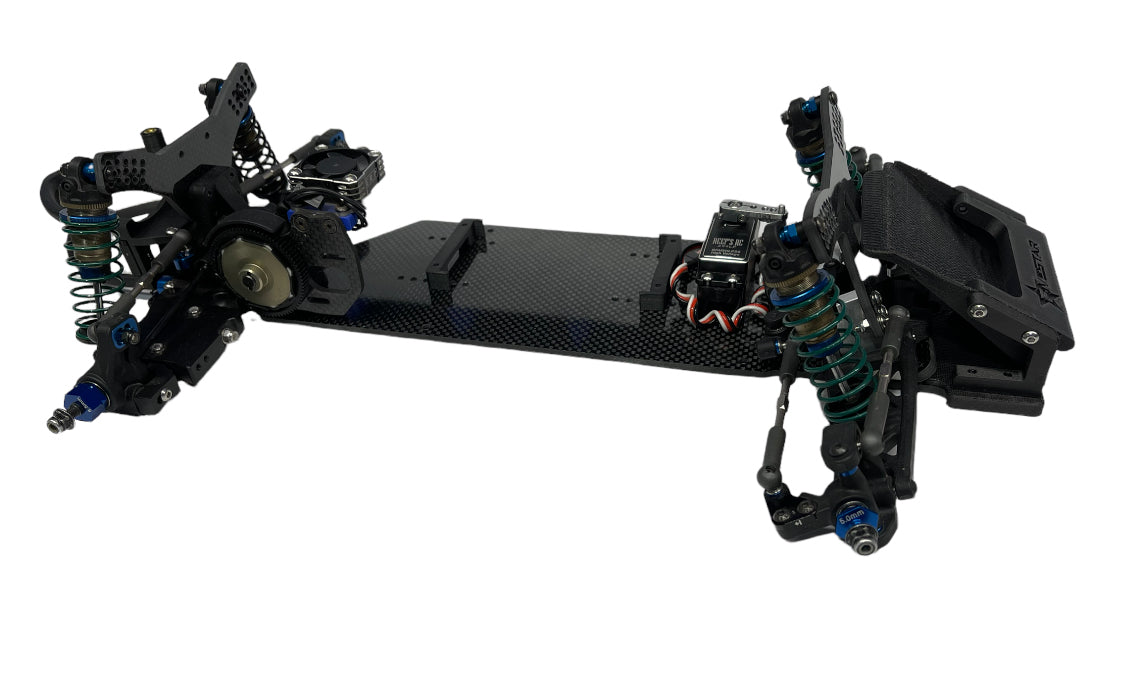

KNOCKOUT CHASSIS
New designed offset conversion chassis for Team Associated B6.1, B6.2, B6.3 and B6.4 or builder’s kit. The chassis allows you to move the battery, transmission, rear arms, and shock tower forward in the car for more steering or move them back to get more rear grip. You can stand up the servo to allow you to move the battery further forward in the car. New designed front end for more stable steering and offset chassis for more left side weight.
BATTERY BRACE
Six different battery positions to choose from with Velcro strap to hold the battery securely in place

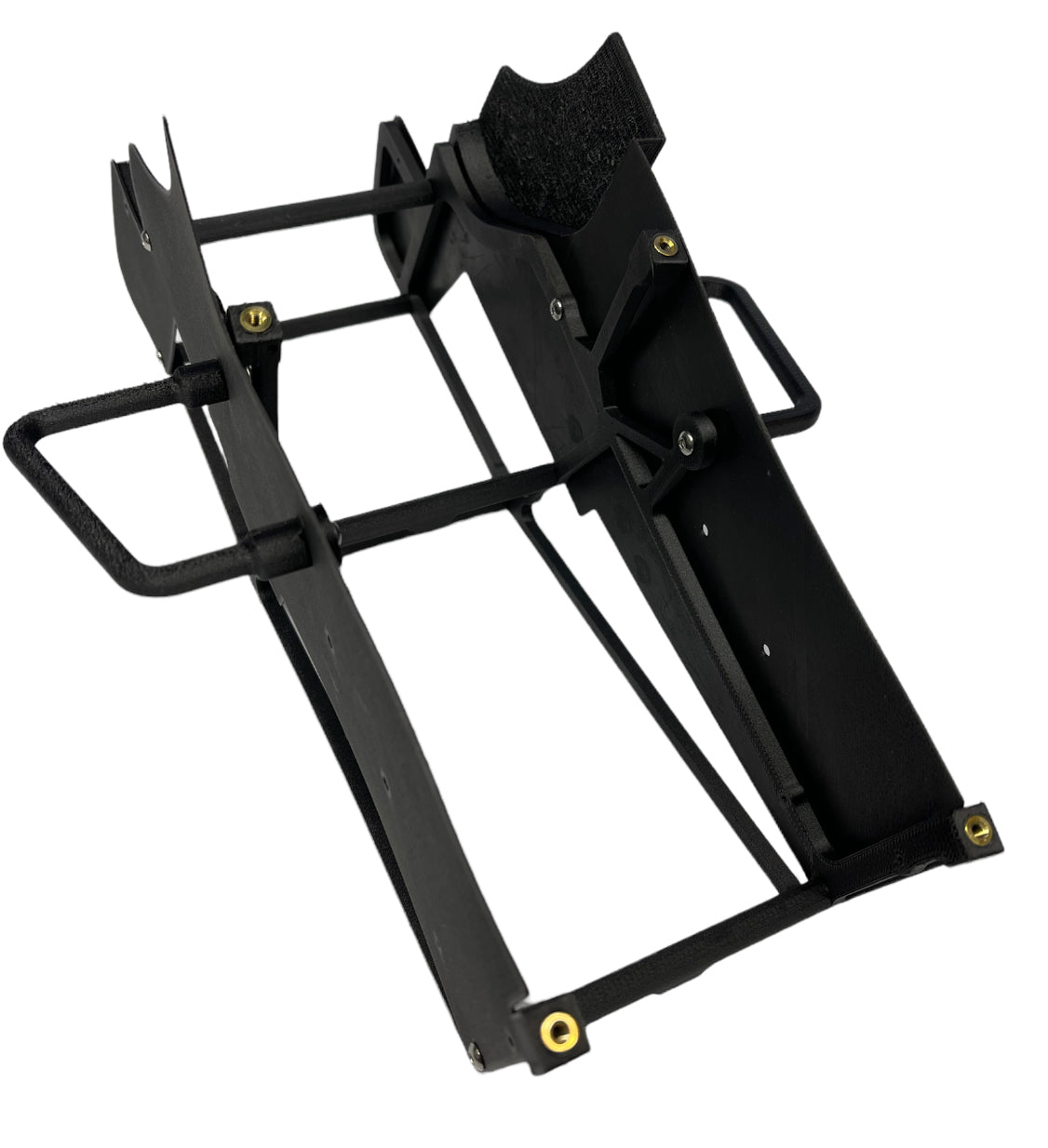

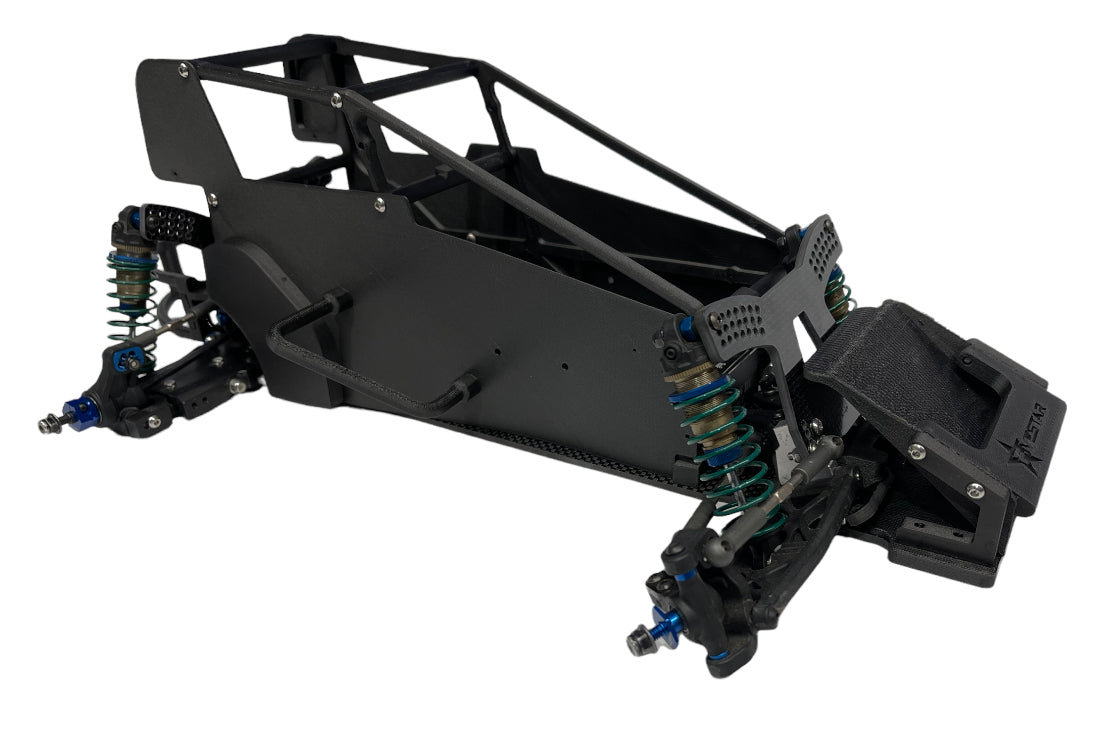

KNOCKOUT BODY CAGE
3D printed cage lighter and stronger with 3mm brass inserts for mounting to the chassis
BODY PANELS FOR KNOCKOUT SPRINT CAGE
3D printed black body panel. Put your wrap on it and you’re ready to go racing. Right side has the gear cover built into the offset
KNOCKOUT FRONT AND REAR SHOCK TOWER
3.5 mm carbon fiber

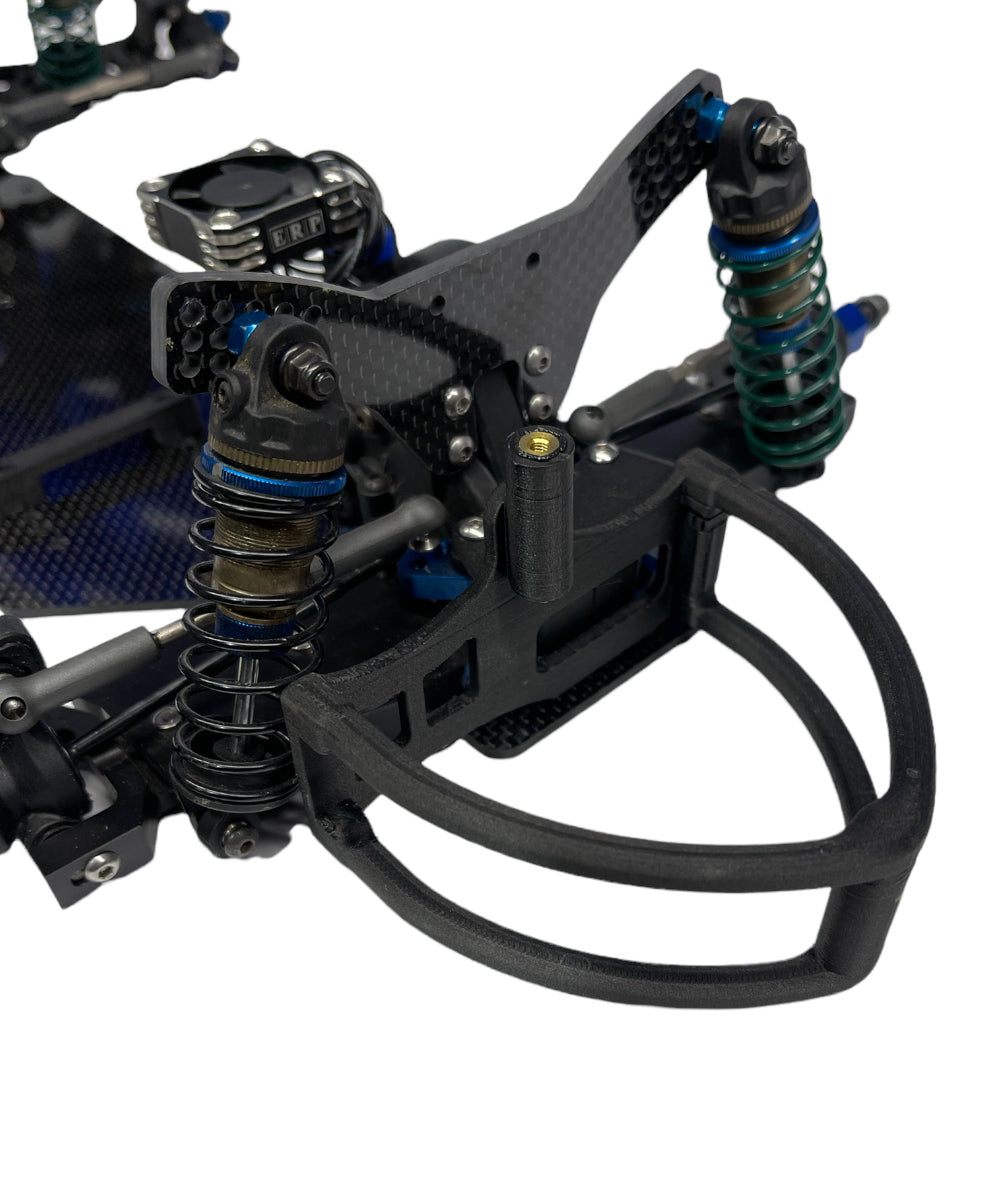

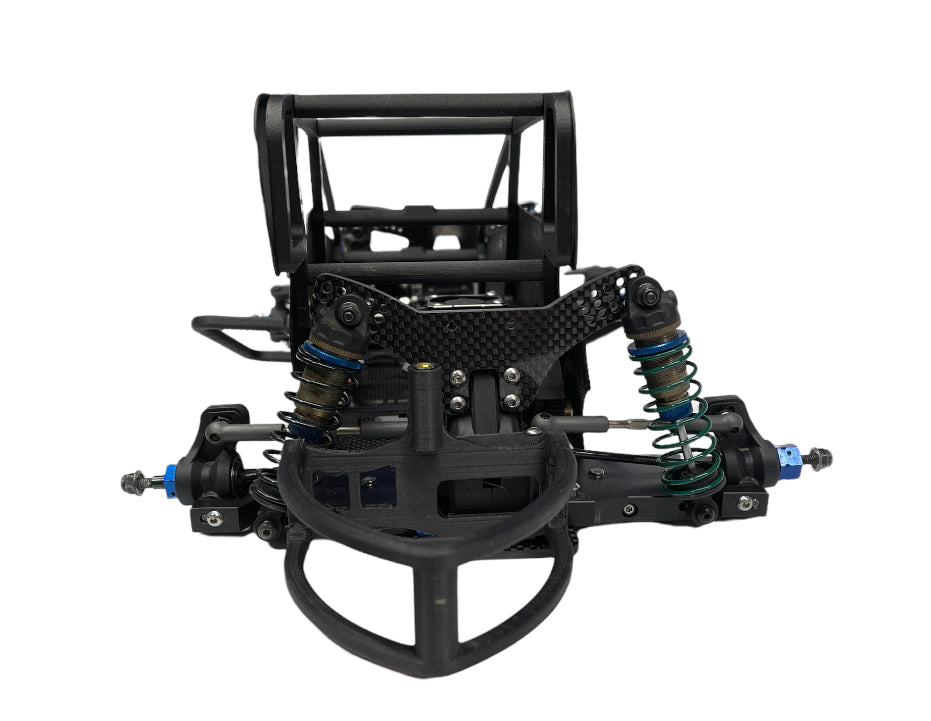

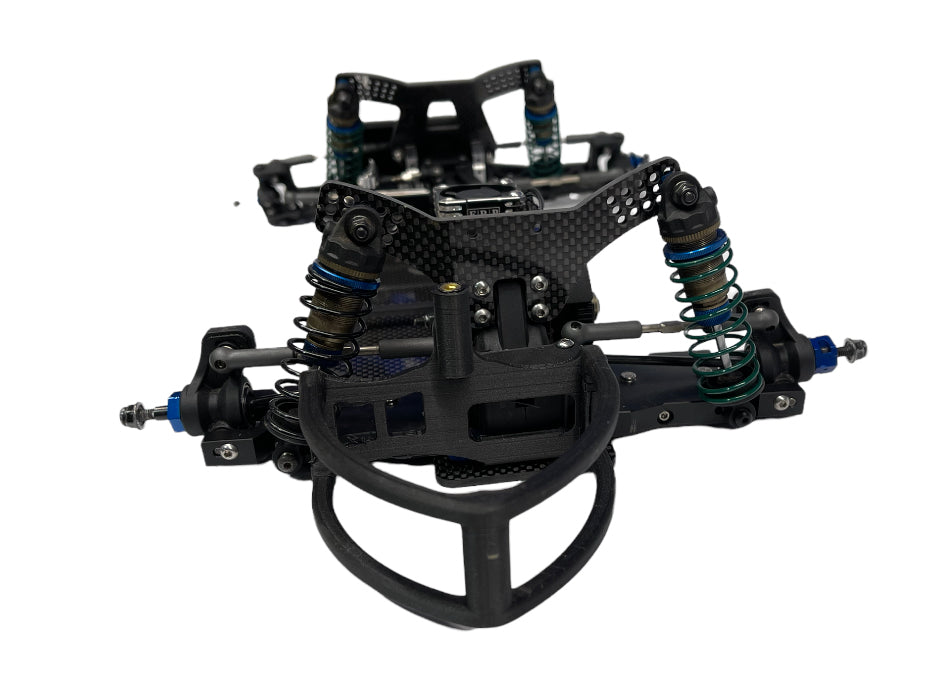

KNOCKOUT REAR BUMPER AND FUEL TANK MOUNT ASSEMBLY
3D printed rear bumper and tank mount with 3mm brass insert
DOOP SCREWS
Comes with front and rear droop adjustment assemblies

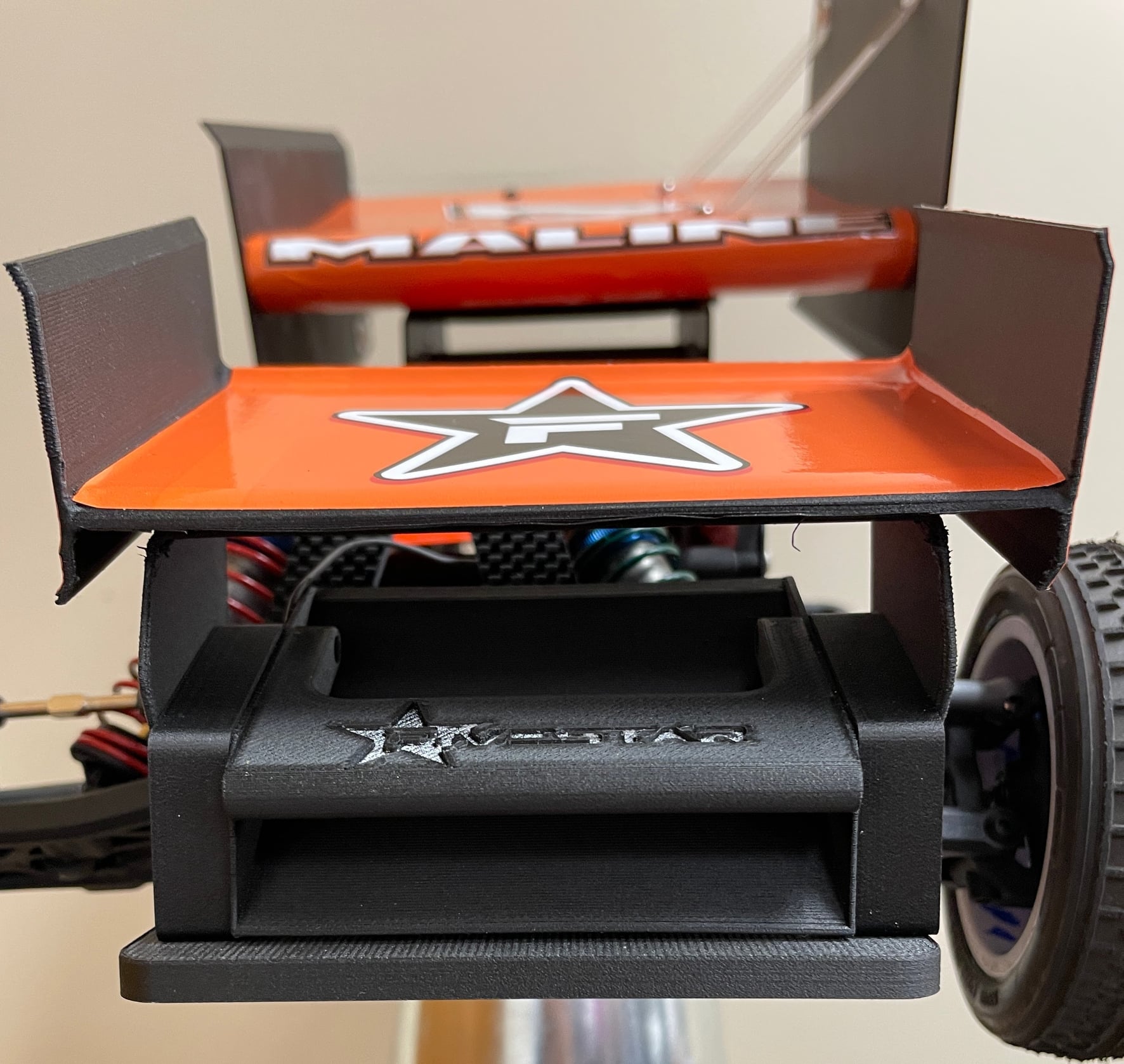

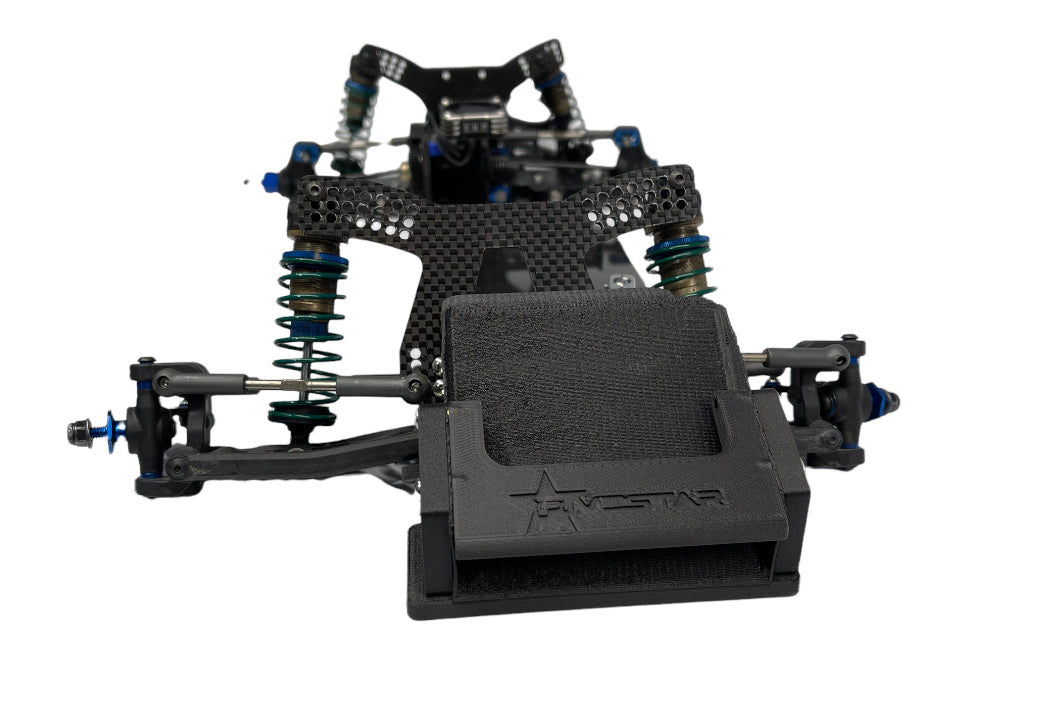

NOSE SCOOP FOR KNOCKOUT SPRINT CAGE
3D printed scoop for more front downforce
25 DEGREE CASTER BLOCK FOR KNOCKOUT – ALUMINUM
Aluminum caster blocks
Bolts to chassis and to front shock tower
TRANSMISSION RISER PLATE
Carbon fiber
Fits laydown or layback transmission
UPRIGHT SERVO MOUNTS
Used to mount the servo vertical in the car
30005 ADJUSTABLE REAR ARMS
Rear toe adjustment in or out made from Delrin
PARTS NOT INCLUDED AND NEEDED TO COMPLETE THE FIVE STAR KNOCKOUT SPRINT CAR:
DONOR CAR SUCH AS A BUILDER’S KIT OR B6.1-B6.4
LOW PROFILE SERVO
SERVO HORN
ESC
BATTERY
MOTOR
WHEELS
TIRES
HOOD
TAIL TANK
FRONT WING
FRONT WING MOUNT
TOP WING
TOP WING MOUNT
