GMA24102

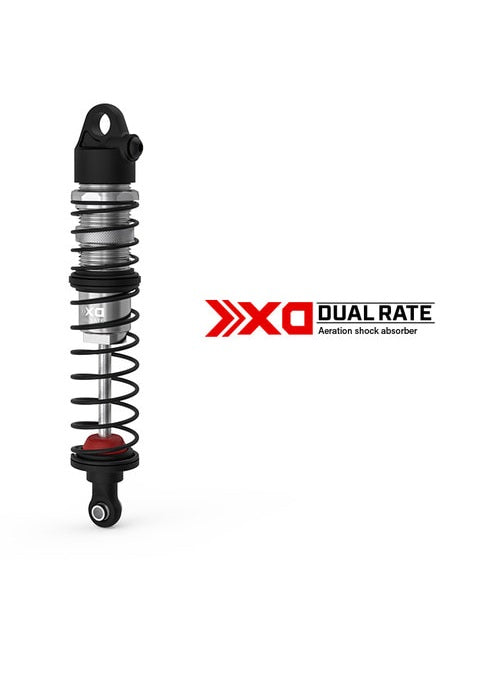

XD Dual Rate Aeration Shock 103mm (2pcs)
CNC machined aluminum shock bodies, spring adjust nuts, stop rings and cartridges.
Silver anodized shock bodies, spring adjust nuts, stop rings and cartridges
Upper and lower shock ends includes silver anodized aluminum balls
Fully threaded for rapid adjustment

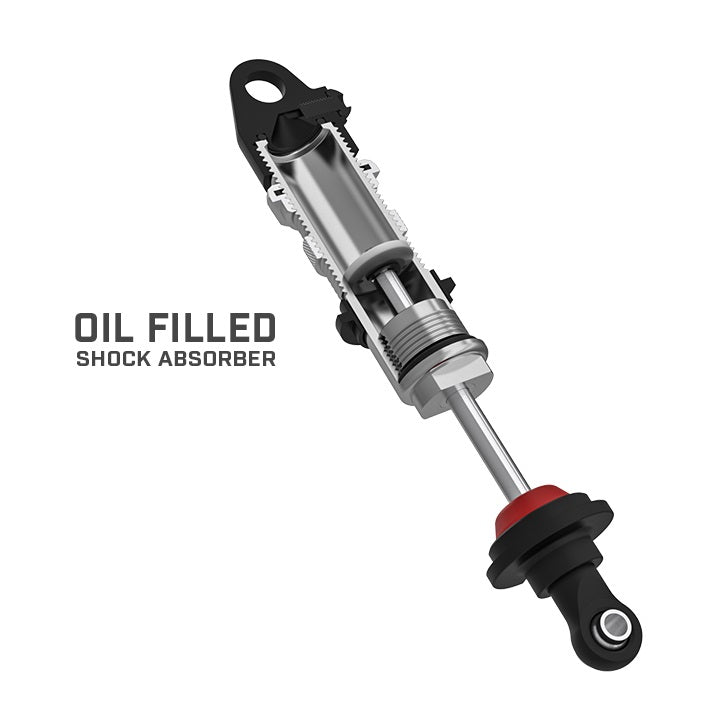

Delrin pistons, shaft exits through double O-ring seals and true dual stage spring rate.

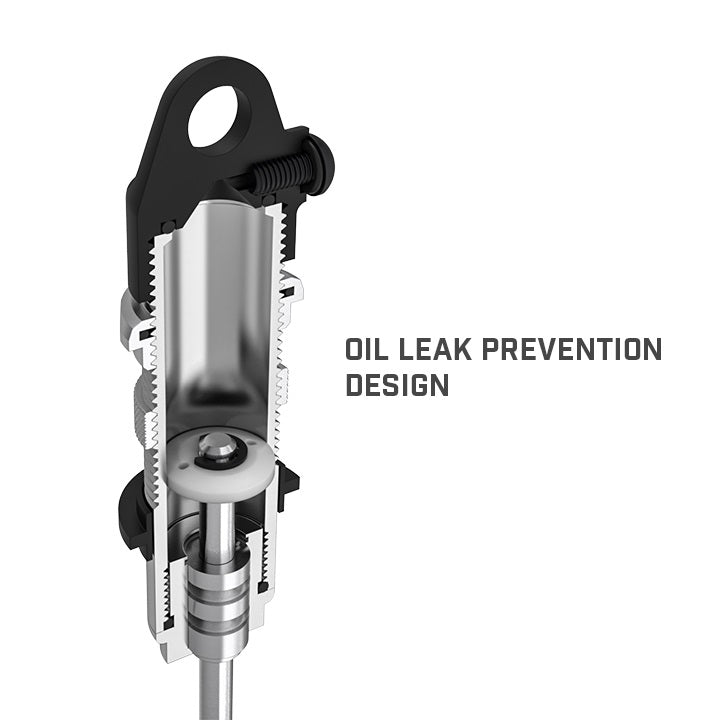

Easy load shock seal assembly
Shock Body Diameter: 14mm
Spring Diameter: 19mm
Spring Length: 20mm and 50mm
Full Shaft Travel Range: 31mm (without Rubber bump stop)
Shaft Diameter: 3.5mm
XD Dual Rate Aeration Shock 103mm (2pcs)
Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1 and GOM, Axial Wraith and Bomber, Traxxas E-maxx and 2WD Slash rear).
What's included:
Silver anodized aluminum shock bodies x 2
Silver anodized aluminum spring adjust nuts x 2
Silver anodized aluminum stop rings x 2
Silver anodized aluminum cartridges x 2
Shock springs x 4
All necessary hardware to finish the shocks
Assembly instructions
Features:
Specifications:
