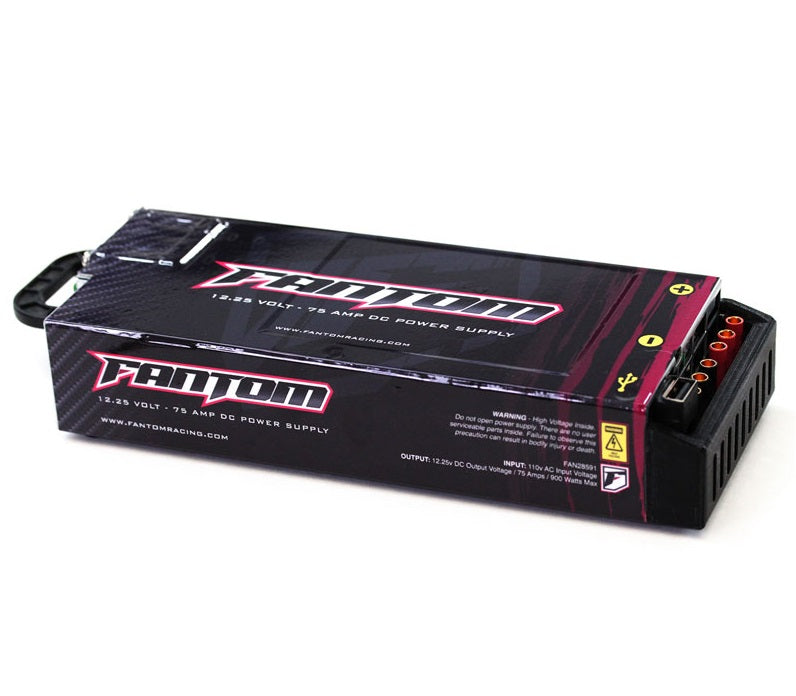

12 VOLT DC POWER SUPPLY – 75 AMP / 900 WATTS WITH 5 VOLT – 3 AMP USB PORT
Get the most out of your battery charger with this high-performance power supply. It provides enough clean, reliable power to charge your batteries at even the most demanding charge rates that today’s high-end chargers are capable of.
More Power to the People…
Here’s the formula to determine how much power you need:
- Battery Pack Voltage x Desired Charge Rate (Amps) = Watts Needed
Example 1:
- 7.4v 2-cell LiPo x 20 amp charge rate = 148 watts required from power supply
Example 2:
- (Dual Charger) 2 x 7.4v 2-cell LiPo’s x 20 amp charge rate = 296 watts amps required from power supply
SPECIFICATIONS:
- INPUT VOLTAGE – 100v to 240v AC (50 – 60 Hz)
- OUTPUT VOLTAGE – 12.25v DC
- OUTPUT CURRENT – 75A Max
- OUTPUT WATTS – 900W Max
- 5 volt – 3 amp USB Port
- DIMENSIONS – 8.5 (9.75 w/ handle) x 3.5 x 1.5″ Inches
- WEIGHT – Approx. 2.25 pounds
FEATURES:
- 5 volt – 3 amp USB Port
- Over-Voltage Protection
- Low-Voltage Protection
- Over-Current Protection
- Over-Temperature Protection
- Short Circuit Protection
- 3 Sets of 4mm Female Gold Bullet Output Connectors
- Cooling Fan w/ Auto Fan Speed
- Completely Vinyl Wrapped with Premium Material and Fantom Graphics
- Includes Protective Cover to Protect Connectors
- Includes 6-foot Heavy-Duty Power Cord
- Handle
- Rubber Feet
WARNING: Do not connect power supplies together in series to produce more voltage. This can cause permanent damage to your power supply and/or charger, which is not covered under warranty.
