RC10B74 Differential Set, center
The center diff allows the vehicle to distribute power from the motor to the front and rear driveline variably, which can provide more grip. The balance of front-to-rear drives can be tuned using various Factory Team diff fluids.

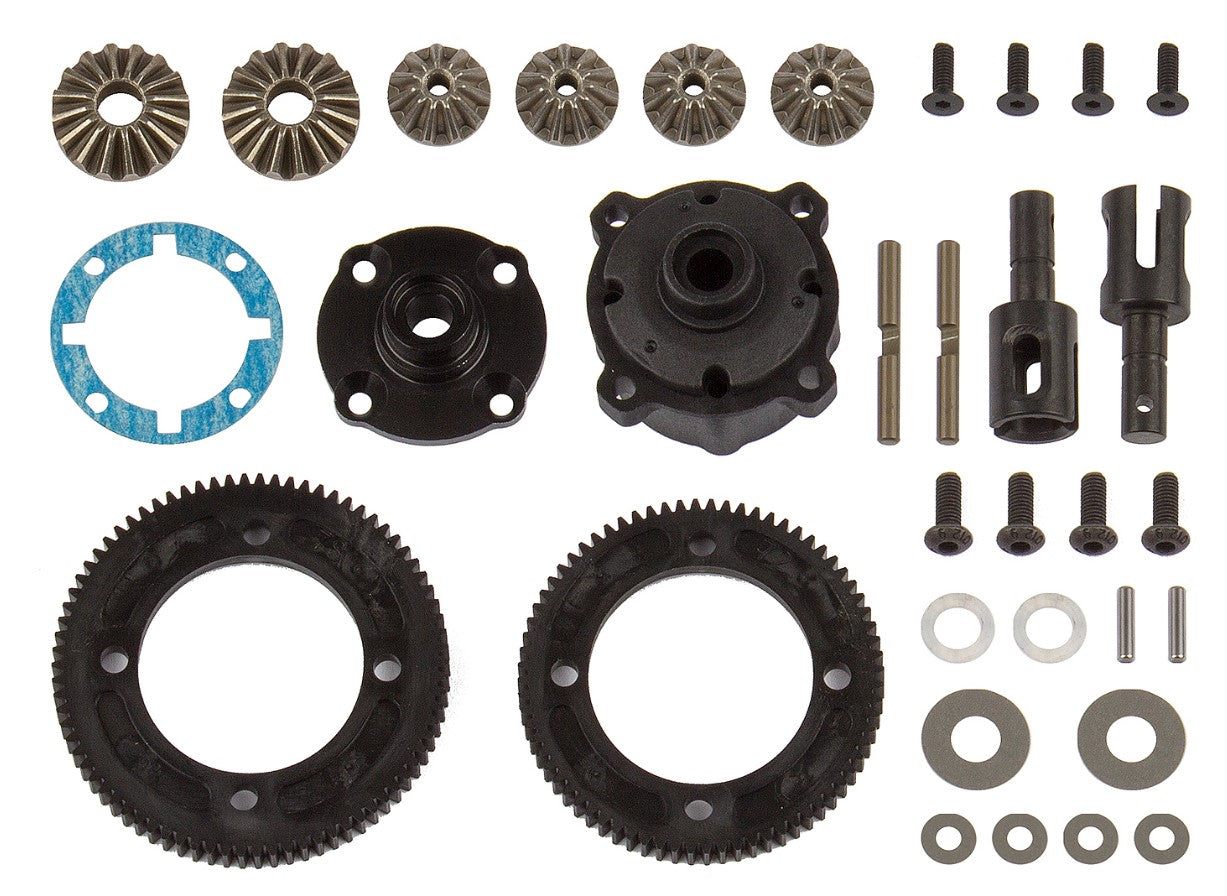

#92144 contents:
qty 2 Differential Cross Pins
qty 1 Differential Case, center
qty 1 Differential Cap, center
qty 2 Differential Outdrives, center
qty 1 Center Gear Diff Spur Gear, 72T
qty 1 Center Gear Diff Spur Gear, 78T
qty 4 Diff T-Nut Washers, 2.55x6.1x.2
qty 2 Shims, 5mm x 12mm x 0.2mm
qty 2 Dowel Pins 2x9mm
qty 4 Screws, M3x0.5x8mm BHCS
qty 4 Screws, M2.5x0.45x8mm FHCS, black
qty 2 O-Rings, 5x1.5mm
qty 2 Gear Differential Sun Gears
qty 4 Gear Differential Planet Gears
qty 1 Differential Gasket
