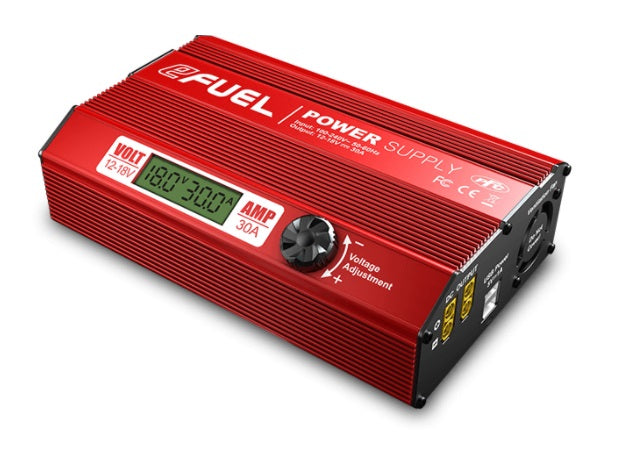

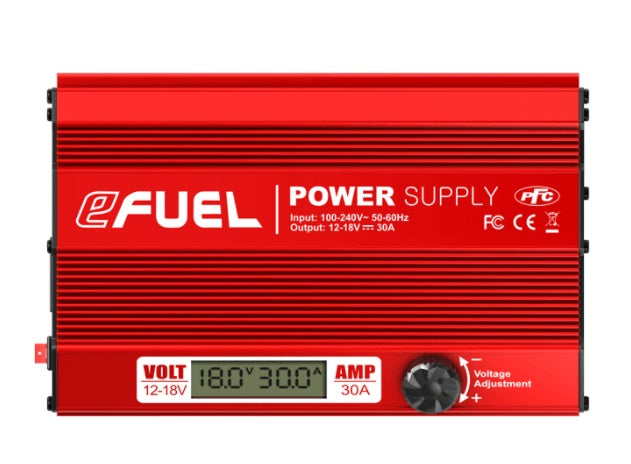

The SkyRC eFuel 30A DC Switching Power Supply is designed to use household AC power source to supply up to 30A of continuous DC power, adjustable between 12-18V DC. Large, easy to read LCD screen makes trouble-free operation a snap, and the red anodized finish looks great on your pit bench!
FEATURES:
- Two DC power outputs, up to 30 amperes
- Output voltage adjustable 12-18V
- Large LCD indicates voltage and current amperes output
- Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
- Smart cooling fan
- Over-temperature protection
- Overloading protection
- Short circuit protection
SPECIFICATIONS:
Voltage…………………………………………………………………………………………………100-240V AC
Input AC Frequency…………………………………………………………………………………………50-60Hz
Output Voltage……………………………………………………………………………………12-18V DC±0.5V
Output Current………………………………………………………………………………………………30A±1A
Current Overload Protection…………………………………………………………………………≤31A 500MS
Input Fuse…………………………………………………………………………………………………… 10A Fuse
LCD Display……………………………………………Voltage Precision ±0.3V/Current Precision ±0.3A
Output Voltage Ripple………………………………………………………………………………………< 150mV
Power Efficiency………………………………………………………………………………………………89%
Power Factor……………………………………………………………………………………………………> 0.98
Over Temperature Protection………………………………………………………………………………<65℃
Cooling Method…………………………………………………………………………………………Cooling Fan
Operating Temperature………………………………………………………………………………………0-40℃
Operating Humidity……………………………………………………………………………………………0-90%
Dimensions (L*W*H)……………………………………………………………………………218x139x59.5mm
Net weight………………………………………………………………………………………………………1.62kg
