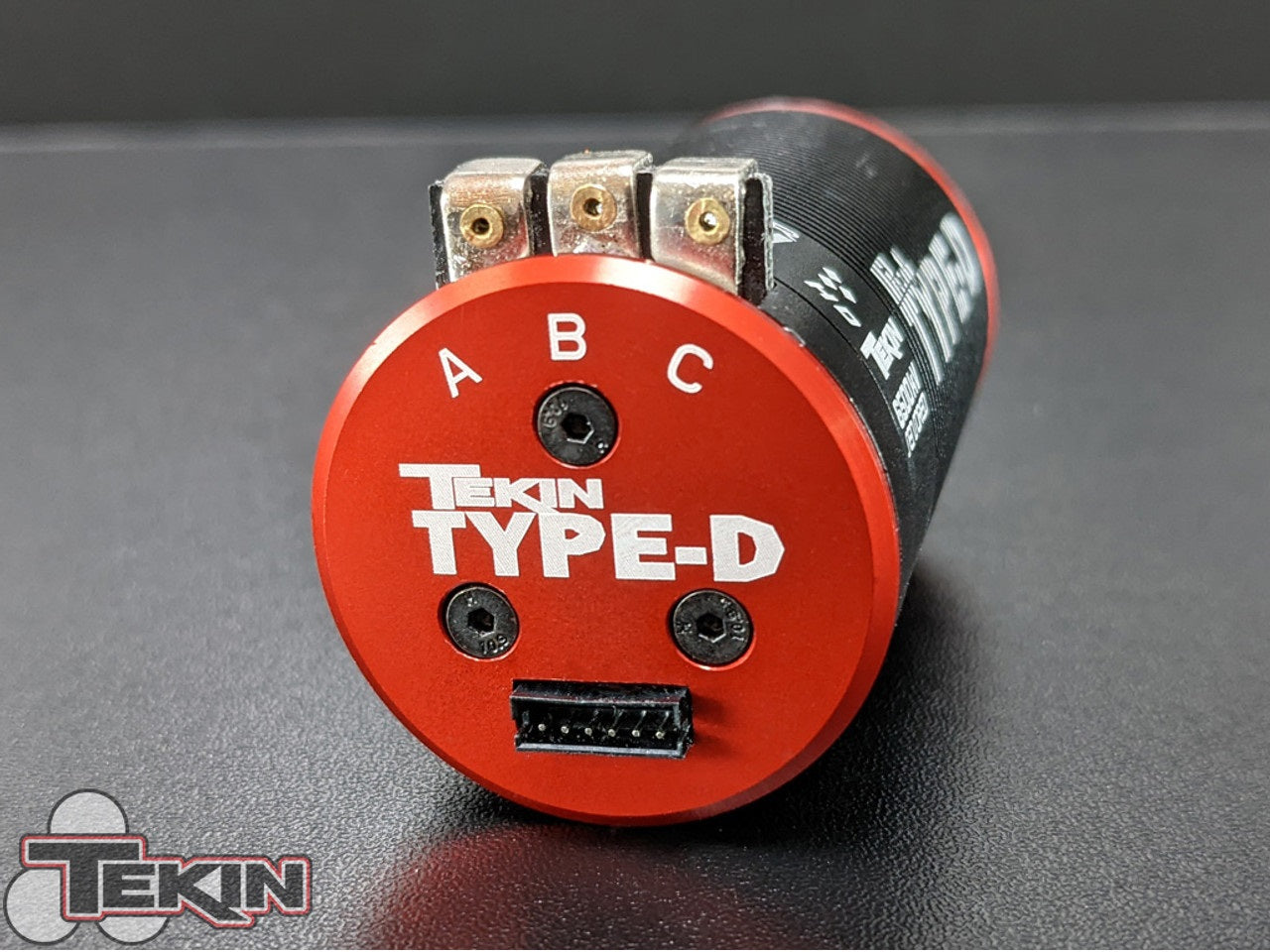

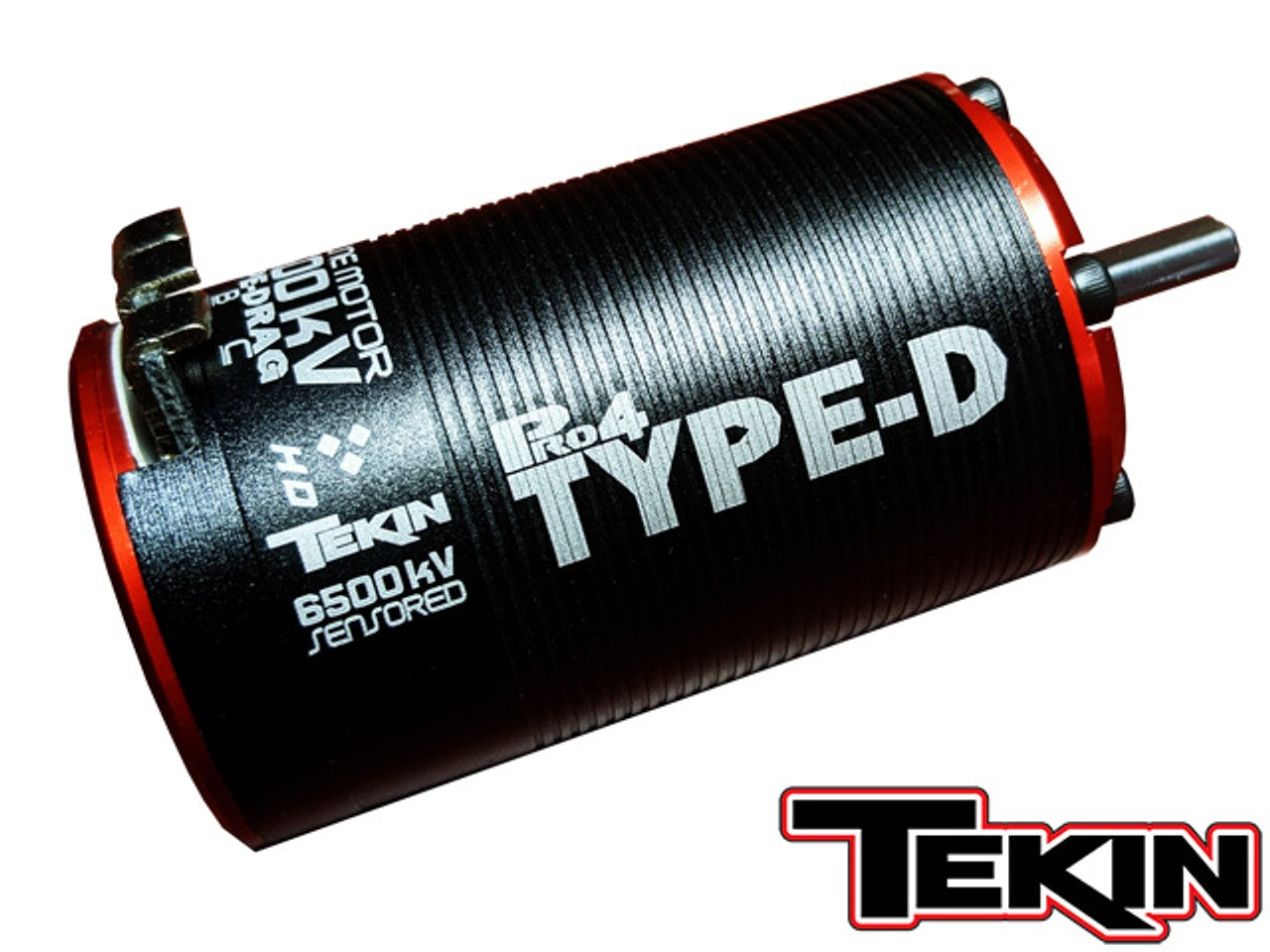

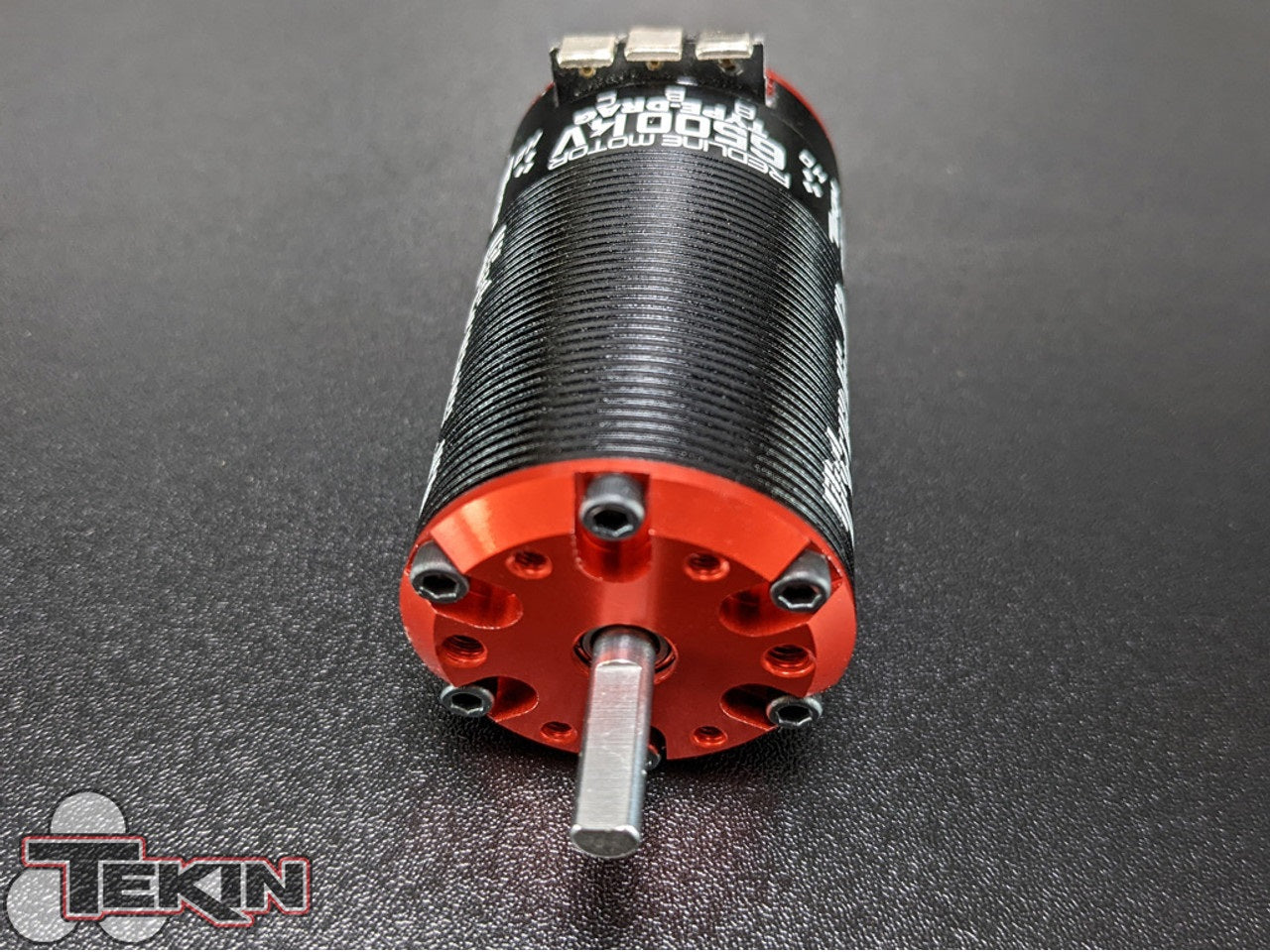

TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR
TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR
TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR
  • Load image into Gallery viewer, TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR
  • Load image into Gallery viewer, TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR
  • Load image into Gallery viewer, TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR

TT255 6500KV TYPE-D 4-POLE BRUSHLESS DRAG MOTOR

Regular price
$175.00 USD
Sale price
$175.00 USD
Regular price
$199.99 USD
Sold out
Unit price
per

Tekin's PRO4 motor lineup introduces the TYPE-D, a purpose-built four-pole 12-slot HD No Prep Drag Racing Motor. Utilizing an oversized Ultra Torque HD Rotor and the highest quality materials available, we designed the TYPE-D Drag Motor to deliver more power across all RPMS. From Pro Mod to Street Eliminator classes, these PRO series motors create huge power whenever you need it. The PRO4 Type-D is competition performance with the power and speed you need to win.

FEATURES

4 Pole 12 Slot Hi-Torque Motor Design
Long Can 550 Size provides more Power and Torque
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
Drag Race Specific
5mm Output Shaft
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
High RPM ABEC5 Oversized Bearings
Oversized Front Bearing adds Durability


SPECS

KV 6500
Design 4 Pole
12 Slot
Input Voltage 1-2S LiPo/LiHV
4.3-8.7V
Weight 7.8oz
221g
Shaft Dimensions 5mm (.196") x 15.3mm
Motor Diameter 35.8mm
1.41in
Motor Length 62.5mm
2.50"
MAX RPM 65,000
Max Operating Temperature 180F
82C
Bearing Dimensions

Front: 5 x 14 x 5mm
Rear: 5 x 11 x 5mm

Rotor Size

18.5mm Installed
18.0mm Included

Rebuildable YES
Rotor Size 18.5mm
Rebuildable YES
